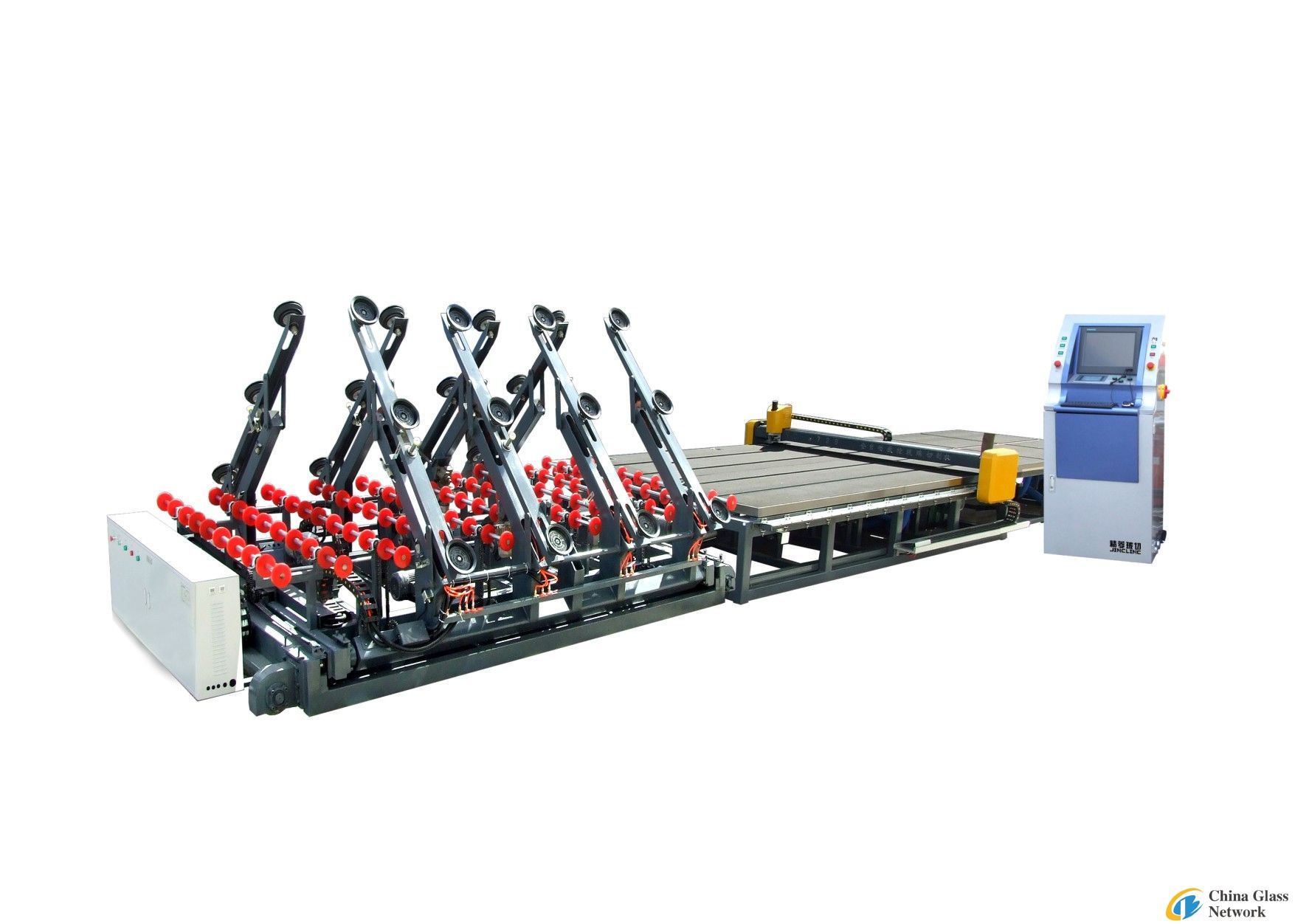

Automatic Glass Cutting Machine Line JL-CNC-4028
Email:bbjlbq@126.com

Detail Information:
JL-QSP-4028Automatic glass sheet loading machine (single side)+ JL-CNC-4028 Automatic glass cutting machine+ JL-BQZ-4028 pneumatic glass breaking table Max cutting size(mm) 3900x2700mm Glass thickness(mm) 3-15mm Working time(s) ≤60s/sheet Max suck depth(mm) 650mm The arm of inverter four arms with 12 vacuum cups Power 6KM ,380V/50HZ (can choose) JL-CNC-4028 Glass Cutting Machine 1) Equipment Specifications MAX Cutting Size(mm) 3900*2700 The Table Highly(mm) 900±50 The Equipment Weight 3T Glass Cutting Thickness 3~15mm 2) Cutting Parameters Cutting Accuracy (mm/m) ≤±0.20 Cutting Speed 120m/min 3) Voltage 220v/380v,3Phase,50Hz
