Individual glass diversity with extreme special sizes

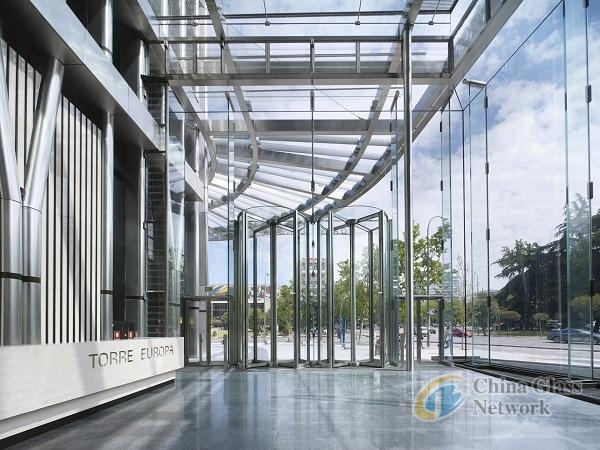

The Torre Europa in Madrid reaches an impressive 121 metres towards the sky. The 33-year-old building in the Spanish capital has just been extensively renovated and modernized: at its foot a new glass cube made from 55 sedak glass elements forms the prestigious entrance to the office tower.

The 10 x 10 x 12 metre cube nestles against the building and its two supporting glass façades offer an unobstructed view of the time-honoured Santiago Bernabeu Stadium located diagonally opposite and the central north-south axis of the city.

At the same time, the transparent lobby provides the colossus, which appears inaccessible from a distance, with an inviting, open character once you get close to it. Stylistically, the up to ten metre high glass elements from sedak (Gersthofen) reflect the imposing nature of the tower.

An unusual task for the large-format glass specialists: the supporting glass beams in the roof of the cube achieve a width-to-length ratio of as much as 1:84.

The iconic Torre Europa has towered above the centre of Madrid since 1985. The building, which for a short time was the highest in the city, is reminiscent of the World Trade Center with its small windows and ribbed façade. The stern architecture of the office tower has now been softened by the new lobby on the northern side of the building.

The architects from Callison RTKL formulated a spacious cube, which leans against the Torre Europa and opens it up invitingly with a full-glass façade towards the boulevard. Its constructional framework is formed by sedak glass fins.

The glass façade, made from 3.0 by almost 10 metre panels, is supported by 60 centimetre narrow fins. The fine supports maintain maximum transparency of the cube. Into each of these the company from Gersthofen laminated up to eight titanium fittings as attachment points, which were provided by the client Bellapart. In order to enable the non right angled floor plan, sedak realized edge mitres of up to 39 degrees.
