How to Distinguish between Waterjet, Laser and Plasma Cutting?

A customer recently asked this question: how to distinguish between waterjet, laser and plasma cutting? and it's a good one with many different possible answers. The best "value" in a machine depends on what is most "valuable" to you! Some of the things you may value most are the cost of buying the machine, operating costs, quality of cut, accuracy of cut parts, or productivity. Let's take a quick look at some of the differences between the three cutting processes - waterjet, laser and plasma cutting - and compare their ratings.

 Waterjet Cutting Head

Productivity

Any discussion of operating costs would be incomplete without considering productivity, as the total cost per part would be determined by dividing the hourly cost of running the machine by the number of parts produced per hour. Productivity is determined by comparing cutting speeds. A fair assessment also needs to include the number of cutting tools, since you can easily have a machine with four waterjet cutting heads cutting at the same time.

Cut Edge Quality

Cut edge quality is the perpendicularity of the finished edge and the amount of slag that adheres to the bottom of the cut. The highest quality cuts typically come from waterjets, which provide very square cuts with no slag and no perforation splatter.

Laser comes in a close second as it also produces a very square cut, but on thicker mild steel or stainless steel, it leaves some slag and produces some perforated spatter. Compared to these two processes, plasma cutting has the lowest cut quality. Plasma always has some edge beveling and often produces some slag. It also produces more perforation spatter than laser due to the larger kerf width.

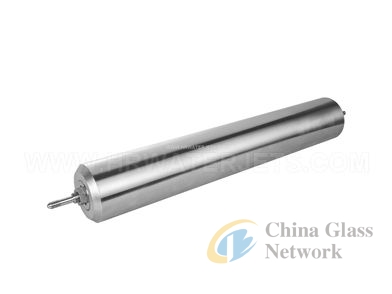

Waterjet Accumulator

Cut Part Accuracy

Cut part accuracy is a measure of the actual resulting part size compared to the programmed part size, and also includes consideration of kerf width, which determines how small an internal contour can be cut. Thermal distortion should also be considered, as it can reduce the finished part size and cause part warpage. Again, the waterjet will be the best for accuracy, typically around +/- 0.005 inches, with a kerf width of about 0.035 inches.

The waterjet will also not cause thermal distortion. The laser will be a very close second, with a typical part size of +/-0.005" and an average kerf width of about 0.025". However, the laser will cause some thermal distortion, especially on thicker boards. Again, plasma comes in last, with typical part size tolerances of about +/-0.020" and typical kerf widths of about 0.150".

Flexibility

This criterion cannot be quantified as easily as cost or speed. But it may be important to consider the types of materials that can be reduced in your purchasing decision. Waterjet cutting is by far the most flexible of these 3 cutting processes because it can cut virtually any material. Lasers are limited to metals, some plastics and fiberglass, and some fabrics. Plasma is the most limited. It can only cut conductive metals and is really only applicable to mild steel, stainless steel and aluminum.

Conclusion

There are many other factors to consider and more accurate assessments can be made, but this comparison provides a quick overview of the relative ratings of some of the things people value most in a CNC cutting system. However, the results depend on which criteria you and your company value most.
